COMPACT POINT-OF USE FILTRATION / RO ADD-ON STERILIZATION UNIT

WaterTec UV Products

  1. high output UV lamp.
  2. compact design allows for maximum application flexiblity.
  3. polished stainless steel reactor chamber.
  4. quick and simple installation.
  5. maximum UV output with highest quality quartz sleeve.
  6. visual LED and audible Alarm indicator for lamp failure.
  7. easy lamp replacement and service.
  8. nature's way to protect your water .
  9. 99.9% destruction of bacteria and virus at rated flow.
  10. reactor chamber fits same clamp as RO membrane vessel.



SPECIFICATIONS
MODEL Flow
(a) 		Flow
(b) 		Lamp
Watts
(W) 		No. of
Lamps 		Timer Dimensions
(inch) 		In / Out
port size
(NPT) 		Housing
Materia
S.S. 		GROSS
WEIGHT
(Kg)
UV2A 1.5 GPM
(6 lpm)
(.36 T/H) 		2 GPM
(8 lpm)
(.48 T/H) 		14 1 No 14 X 2 1/2 1/4" or
3/8" STEM 		304L 3

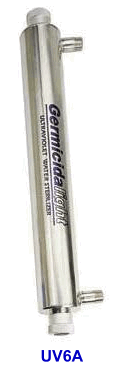

UV6A 5 GPM
(20 lpm)
(1.2 T/H) 		6 GPM
(24 lpm)
(1.44 T/H) 		25 1 No 21 X 2 1/2 1/2" 304L 3.5

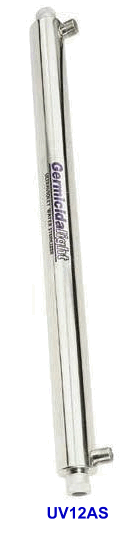

UV12AS 10 GPM
(40 lpm)
(2.4 T/H) 		12 GPM
(48 lpm)
(2.88 T/H) 		39 1 No 38 X 2 1/2 3/4" 304L 5

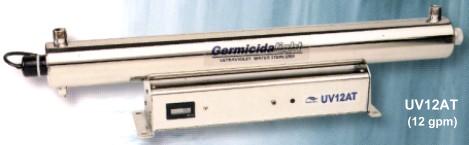

UV12AT 10 GPM
(40 lpm)
(2.4 T/H) 		12 GPM
(48 lpm)
(2.88 T/H) 		39 1 Yes 38 X 3 3/4" 316L 12
UV24A 20 GPM
(80 lpm)
(4.8 T/H) 		24 GPM
(96 lpm)
(5.76 T/H) 		78 2 No 38 X 3 1/2 1" 304L 16

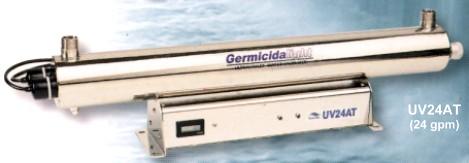

UV24AT 20 GPM
(80 lpm)
(4.8 T/H) 		24 GPM
(96 lpm)
(5.76 T/H) 		78 2 Yes 38 X 3 1/2 1" 316L 16

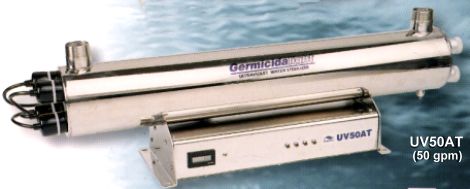

UV50AT 40 GPM
(160 lpm)
(9.6 T/H) 		50 GPM
(200 lpm)
(12 T/H) 		156 4 Yes 38 X 5 1 1/2"
or
2" Flange 		316L 23
UV100AT 80 GPM
(320 lpm)
(19.2 T/H) 		100 GPM
(400 lpm)
(24 T/H) 		312 8 Yes 38 X 8 2" Flange 316L 50

  • A = Alarm, T = Timer
  • Flow (a): Flow Rate in Clear, Clean Water
  • Flow (b): Flow Rate in Distilled, DI, or RO Water
  • Lamp Failure Warning System: LED & Alarm
  • Lamp Rated Life (hrs): 9000
  • Maximum Operating Pressure: 125 psi (8.3 bar)
  • Electrical: 120VAC, 220กใ240VAC & 50/60Hz available on request.
  • S.S. #304L & #316L Stainless steel available on request.

UV MISCELLANEOUS PARTS
LAMPS
MODEL DESCRIPTION
LS287T5L replacement lamp for UV2A 14W
LS436T5L replacement lamp for UV6A 25W
LS36T5L replacement lamp for UV12A 39W
LS64T5L replacement lamp for UV200A 65W
QUARTZ JACKETS
LS-001 quartz sleeve 330 mm for UV2A
LS-001D Domed quartz sleeve 330 mm for UV2A
LS-006 quartz sleeve 483 mm for UV6A
LS-012 quartz sleeve 890 mm for UV12A
LS-012D Domed quartz sleeve 890 mm for UV12A
LS-024 quartz sleeve1600 mm
LS-024D Domed quartz sleeve 1600 mm
BALLAST
UV287A12 Ballast 120VAC / 60Hz (LED / Alarm) for UV2A
UV287A22 Ballast 220VAC / 60Hz (LED / Alarm) for UV2A
UV287A23 Ballast 230VAC / 50Hz (LED / Alarm) for UV2A
UV436A12 Ballast 120VAC / 60Hz (LED / Alarm) for UV6A
UV436A22 Ballast 220VAC / 60Hz (LED / Alarm) for UV6A
UV436A23 Ballast 230VAC / 50Hz (LED / Alarm) for UV6A
UV36A22 Ballast 220VAC / 60Hz (LED / Alarm) for UV12AS
UV36A23 Ballast 230VAC / 50Hz (LED / Alarm) for UV12AS
