SANITARY

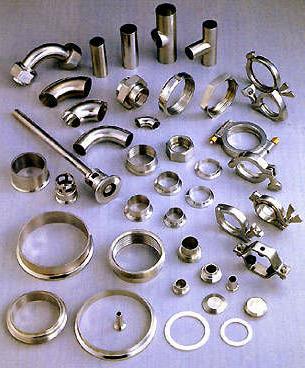

STAINLESS STEEL FITTINGS |
 |
 |
|
Wide selections from our various specification of sanitary fittings and parts. Materials are available on T304 and T316L. 3A, IDF, RJT, DIT, SMS are available from us. Other specification available upon inquiry. |
|
CLAMP FITTINGS Sizes available from 1/2" up to 8": Clamps are made of investment casting, T304. Ferrules are made from bar stock T304 & 316L, all in strict quality control. Gaskets for clamp fittings are available on EPDM, TEFLON.....etc. |
|
BEVEL SEAT FITTINGS Bevel seat unions consist of a thread bevel ferrule mate with a plain bevel ferrule. Both are offered in T304 & T316L. Hex union nuts made of only T304. |
|
SANITARY BUTT WELD FITTINGS We could supply polished I. D. & O. D. fittings and other polish combination for tees and 90 degree elbows.3A, IDF, SMS, RJT, DIN, and other specification available upon inquiry. |
| Property | EPDM | NEOPRENE | VITON | SILICONE |
| Temperature | -55 to 275oF | -40 to 225oF | -20 to 400oF | -80 to 450oF |
| Acid Resistance | Good-Excellent | Good | Good | Good |
| Alkali Resistance | Good-Excellent | Fair-Good | Poor-Good | Poor-Good |
| Petroleum Oil Resistance | Poor | Excellent | Excellent | Good |
| Vegetable Oil Resistance | Good | Good | Excellent | Good |
| Abrasion Resistance | Good-Excellent | Good | Good | Good-Excellent |
| Compression Set | Fair | Good | Good-Excellent | Good-Excellent |
