Committed to Quality
- We have always regarded quality as the basis of our success. We insist on putting quality first.
- We continuously strive to improve our manufacturing processes and refine our management systems.
- NSF grade materials provide safe storage of drinking water after filtration.
- To safeguard customers interests, all tanks undergo in-process and finished-product inspections.
- For effective quality control, all manufacturing processes are performed in-house as part of an integrated system.

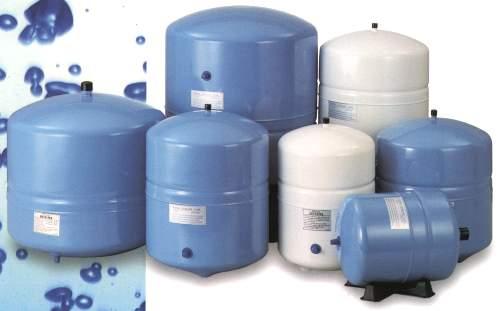

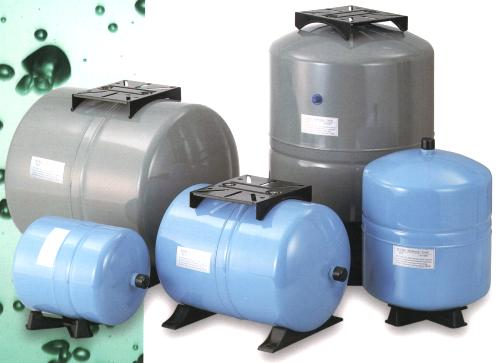

- A range of sizes from 8 liters to 80 liters meets customers differing needs.
- Stainless steel connection system provides safe drinking water.
Reverse Osmosis Purpose
|
---|
Model Number
| Totel Tank Volume
| Height mm
| Diameter mm
| Weight mm
| Connector NPT
| Pocked Volume Cu. ft
|
---|
RO-120
| Gal. 2.1 Ltrs. 8.0
| 320
| 200
| 2.43
| 1/4"
| 0.55
|
---|
RO-122
| Gal. 3.2 Ltrs. 12.1
| 358
| 200
| 3.10
| 1/4"
| 0.72
|
---|
RO-132
| Gal. 4.4 Ltrs. 17.0
| 380
| 276
| 4.16
| 1/4"
| 1.07
|
---|
RO-152
| Gal. 5.5 Ltrs. 20.8
| 390
| 290
| 4.72
| 1/4"
| 1.38
|
---|
RO-760
| Gal. 10.3 Ltrs. 39.0
| 420
| 390
| 9.00
| 1/4" or 3/4"
| 2.42
|
---|
RO-1070
| Gal. 14.0 Ltrs. 53.0
| 580
| 390
| 11.30
| 1/4" or 3/4"
| 3.30
|
---|
RO-2000
| Gal. 20.0 Ltrs. 76.0
| 770
| 390
| 15.10
| 3/4"
| 4.40
|
---|

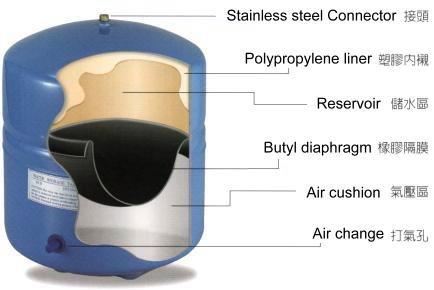

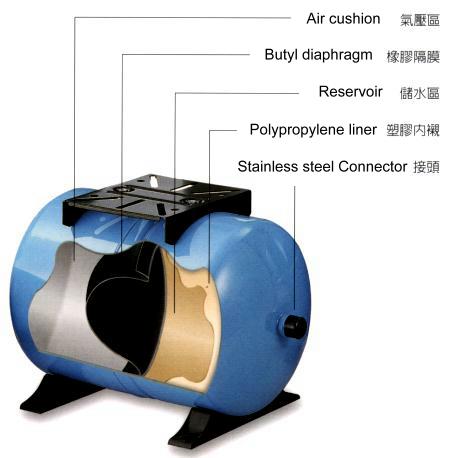

Advantages of a Metal Diaphragm Type Expansion Tank
- Metal shell has greater pressure resistance than plastic.
- Lower molecular porosity of metal eliminates air pressure loss.
- Diaphragm-type design assures stable water outflow.
|
