Watertec Custom Germicidal Lamps & quartz sleeves

殺菌燈管及石英管類型

WaterTec Custom Germicidal Lamps


Examples of other germicidal lamp types are described below. These are available in any combination of lamp length; glass type; base type - ULTRA-V®, Plastic, Type A Ceramic; and base pin configuration - single pin, bipin, four-pin circuline or lead wires.

Instant-Start Lamps with Connections at Both Ends


Instant-Start Lamps with Connections at One End


Preheat or Rapid-Start with Connections at Both Ends


Preheat or Rapid-Start with Connections at One End


Special Shaped Lamps

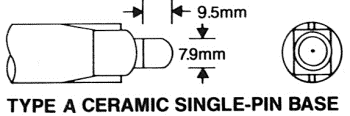

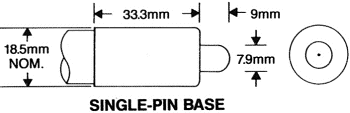

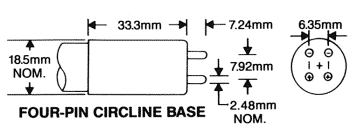

WaterTec Custom Germicidal Lamp Bases

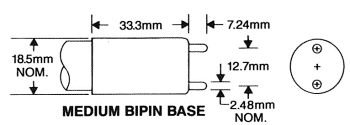

Picture of Mini Bi-Pin Base Picture of Med. Bi-Pin Base

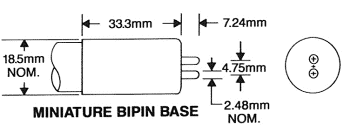

Picture of Mini Bi-Pin Base

Picture of Mini Bi-Pin Base

Picture of Mini Bi-Pin Base

Quartz Sleeves

WaterTec also makes a variety of quartz sleeves, jackets, and wells in various diameters and lengths for use in water disenfection units, photochemical reactors and other special equipment. These are available with closed or open ends, sawcut or fire polished ends, or in special shapes.

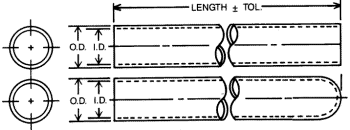

Quartz Sleeves Picture
Standard Sizes:
I.D. O.D.
18mm 20.5mm
20mm 22mm
20mm 23mm
22mm 24.5mm
22mm 25mm
30mm 33mm
