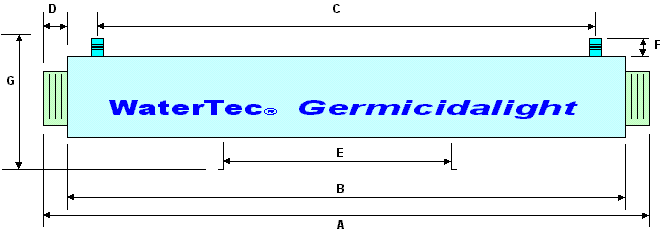

| UV Housing Dimensions Specifications |
|---|
| Dimensions Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Models | P/N | O.D. (inch) | O.D. (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | I/O Size | Shipping Weight (kgs) | Shipping Size (mm) |
| UV2A | S2-304-2 | 2.5" | 63.5 | 310 | 285 | 250 | 12.5 | - | 15 | - | 1/4" | 3.0 | - |
| UV6A | S6-304-4 | 2.5" | 63.5 | 463 | 438 | 400 | 12.5 | - | 25 | - | 1/2" | 3.5 | - |
| UV12AS | S12-304-6 | 2.5" | 63.5 | 870 | 845 | 790 | 12.5 | - | 25 | - | 3/4" | 4.6 | - |
| UV12AT | 12-316-6 | 3.0" | 89.1 | 870 | 845 | 790 | 12.5 | 450 | 25 | - | 3/4" | 12.0 | - |
| UV24AT | 24-316-8 | 3.5" | 101.6 | 870 | 845 | 775 | 12.5 | 450 | 30 | - | 1" | 16.0 | - |
| UV50AT | 50-316-12 | 5.0" | 139.8 | 870 | 845 | 760 | 12.5 | 450 | 50 | - | 1.5" | 23.0 | - |
| UV50AT-F | 50-316-2F | 5.0" | 139.8 | 870 | 845 | 760 | 12.5 | 450 | 50 | - | 2" Flange | 25.0 | - |
| UV50AT-S | 50-316-2S | 5.0" | 139.8 | 870 | 845 | 760 | 12.5 | 450 | 50 | - | 2" Sanitary | 23.0 | - |
For more information or to order fax: +886-3-950-6811 or e-mail: dragon@watertec.com
