Watertec Standard Germicidal Lamps

│

Watertec Standard Germicidal Lamps

Plastic Base	Std. Pkg. Qty. (2)	Base Face Length (3)		Arc Length	Typical Operating Charecteristics
Model Number	Std. Pkg. Qty. (2)	Inches	mm	Inches	Lamp Watts (W)	Lamp Current (mA)	Lamp Voltage (V)	UV Output Watts (4)	Output uW/cm2 at 1 meter (4)
Instant Start Lamps
G10T5-1/2L	12	14.0	356.6	10.9	16	400	55	5.3	55
G10T5-1/2H	12	14.0	356.6	10.9	16	400	55	5.3	55
G10T5-1/2VH	12	14.0	356.6	10.9	16	400	55	5.3	55
G36T6L	4	33.2	842.4	30.0	39	425	120	13.8	120
G36T6H	4	33.2	842.4	30.0	39	425	120	13.8	120
G36T6VH	4	33.2	842.4	30.0	39	425	120	13.8	120
G37T6VH	4	34.2	867.8	31.0	40	425	120	14.3	130
G64T5L	4	61.2	1553.6	58.0	65	425	220	25.0	200
G64T5VH	4	61.2	1553.6	58.0	65	425	220	25.0	200
G67T5L	4	64.2	1629.8	61.0	79	425	238	25.6	205
G67T5VH	4	64.2	1629.8	61.0	79	425	238	25.6	205
GSL692T5L	4	27.3	692.0	24.1	32	425	94	11.0	95
Cold Cathode Lamps
782L10	12	14.0	356.7	8.7	15	90	180	2.8	22
782H10	12	14.0	356.7	8.7	15	90	180	2.8	22
782VH10	12	14.0	356.7	8.7	15	90	180	2.8	22
782L20	12	24.0	610.7	18.7	22	90	270	5.5	45
782H20	12	24.0	610.7	18.7	22	90	270	5.5	45
782VH20	12	24.0	610.7	18.7	22	90	270	5.5	45
782L30	4	34.0	864.7	28.7	28	90	350	8.3	63
782H30	4	34.0	864.7	28.7	28	90	350	8.3	63
782VH30	4	34.0	864.7	28.7	28	90	350	8.3	63
Preheat Start Lamps
GPH212T5L	12	8.4	212.0	5.2	10	400	32	2.6	23
GPH287T5L	12	11.3	287.0	8.1	14	400	42	3.0	33
GPH287T5VH	12	11.3	287.0	8.1	14	400	42	3.0	33
U-Lamps (Preheat Start)
GPHU22-10T5-1/2L	12	7.3	186.0	10.9	16	400	55	5.3	55
GPHU22-36T6L	12	16.9	429.0	30.0	39	425	120	13.8	120
GPHU22-390T5VH	12	15.4	390.0	27.5	36	425	100	12.0	105
GPUH76-10T5-1/2VH	12	6.7	169.0	10.9	16	400	55	5.3	55
GPHU76-36T6VH	10	16.2	412.0	30.0	39	425	120	13.8	120
GPHU76-802T5VH	10	15.4	391.0	28.0	37	425	108	12.8	110
U-Lamps (Instant Start)
GSLU22-10T5-1/2L	12	7.3	186.0	10.9	16	400	55	5.3	55
GSLU22-36T6L	12	16.9	429.0	30.0	39	425	120	13.8	120
GSLU22-390T5VH	12	15.4	390.0	27.5	36	425	100	12.0	105
GSLU76-10T5-1/2VH	12	6.7	169.0	10.9	16	400	55	5.3	55
GSLU76-36T6L	10	16.2	412.0	30.0	39	425	120	13.8	120
GSLU76-802T5VH	10	15.4	391.0	28.0	37	425	108	12.8	110

FOOTNOTES:

(1) WaterTec is a trademark of WaterTec Enterprise Inc.

(2) Also available in bulk-pack, 30 lamps per carton to reduce freight cost charges.

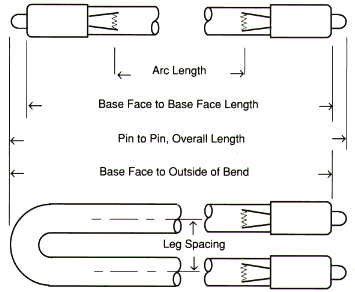

(3) Nominal base face to base face dimensions are given for straight lamps. Length tolerance for Bipin lamps with pin connections at both ends is ~2.4mm. Tolerance of Slimline, Cold Cathode, and all "single-ended" lamps is +3.0mm. Nominal U-lamp length is base face to outside of bend with tolerance of ~6.4mm.

(4) Approximate output after 100 hours of use measured in still air at T70F ambient and under specific test conditions. Subject to wide variations due to application conditions. Rated average useful life is defined as the elapsed operating time under essentially continuous operation for the output to decline to 60% of the output the lamp had at 100 hours. Hot-cathode lamps have a rated average useful life of 9,000 hours; cold-cathode lamps have a rated average useful life of 17,500 hours.
